Ozeki firewall settings for Windows 10

In this guide you can learn how you can allow incoming connections on 9500 and 9501 ports at Windows Firewall(Windows 10).

Take the following steps:

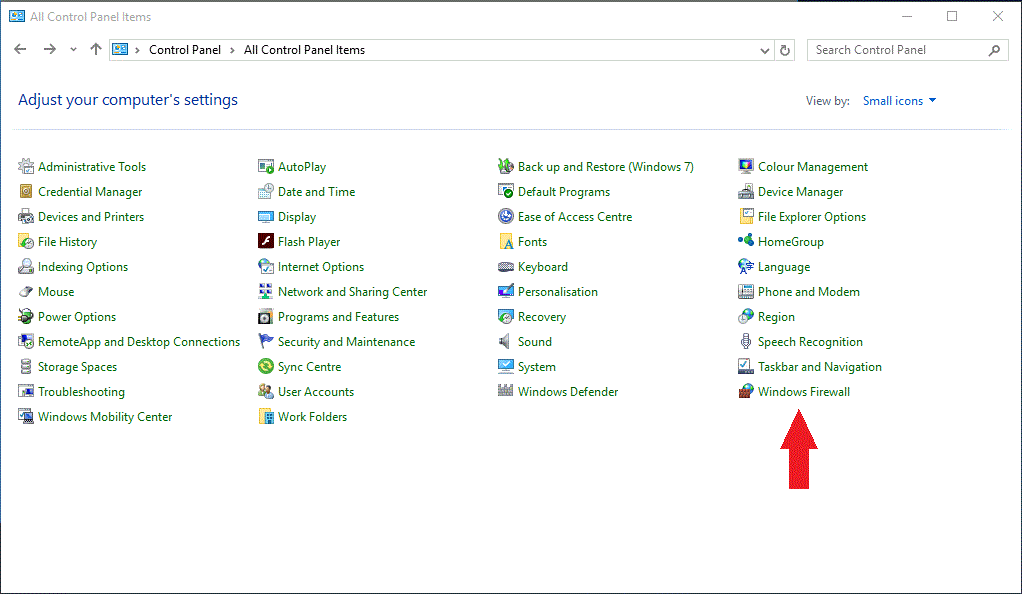

To allow incoming connections, first you need to go to Control Panel at Start menu and click on Windows Firewall icon (Figure 1).

control panel
Figure 1 - Control Panel

At Windows Firewall, select "Advanced Settings" (Figure 2).

windows firewall settings
Figure 2 - Windows Firewall

In the next page select "Inbound Rules"(Figure 3).

advanced settings page
Figure 3 - Advanced Settings page

Now click to "New Rule..." button at right(Figure 4).

inbound rules page
Figure 4 - Inbound Rules page

In the next dialog box select the "Port" radio button and then click to "Next" (Figure 5).

select the type of the rule
Figure 5 - Select the type of the rule

At the next page type in the "port numbers" (9500-9501) what you want to enable and click to "Next" (Figure 6).

type in the port numbers
Figure 6 - Type in the port numbers

Leave the radio button on "Allow the connection" and click to "Next" (Figure 7).

choose the action
Figure 7 - Choose the action

Leave all pipes in the boxes and click "Next" (Figure 8).

select the applying of this rule
Figure 8 - Select the applying of this Rule

In the last page "Name the Rule" and click the "Finish" button (Figure 9).

name the rule
Figure 9 - Name the Rule

Finaly you can see your new rule in the list is the rules (Figure 10).

list of the rules
Figure 10 - The list of the rules
