How to set dynamic keywords in Ozeki NG SMS Gateway

This page explains how you can set dynamic keywords in Ozeki NG SMS Gateway effectively. The example below uses Oracle 10g XE database for demonstration.

When you use Ozeki NG SMS Gateway you can set keywords in the SQL table to achieve various functions. For the list of the available keywords please check Keywords in the SQL templates page.

However, there is a possibility to define further keywords beside the above mentioned ones to get further functions. These dynamic keywords can be specified in your database (in this example in Oracle 10g XE database). After you specified your keywords, Ozeki NG SMS Gateway will poll the variable names and parameters from the database.

Since this example uses uses Oracle 10g XE database for demonstration, it is required that the Oracle database has been configured to Ozeki NG according to the following webpage: https://ozekisms.com/p_2646-how-to-send-sms-from-oracle-10g-xe.html.

Step by step guide

First you need to create the necessary database tables and structures. Insert the following SQL commands and click on Run:

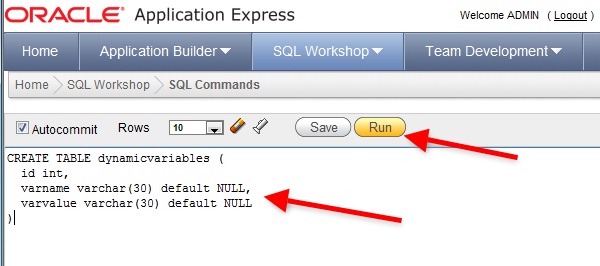

Create table dynamicvariables and click Run (Figure 1):

CREATE TABLE dynamicvariables (
  id int,
  varname varchar(30) default NULL,
  varvalue varchar(30) default NULL
)

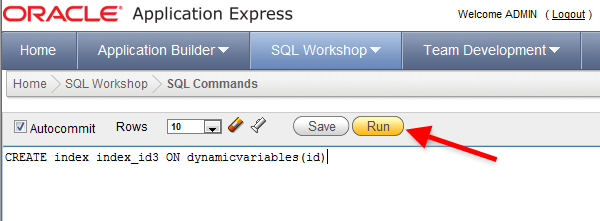

Create index on dynamicvariables and click Run (Figure 2):

CREATE index index_id3 ON dynamicvariables(id)

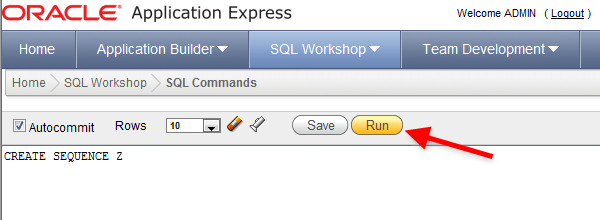

Create sequence and click Run Figure 3):

CREATE SEQUENCE Z

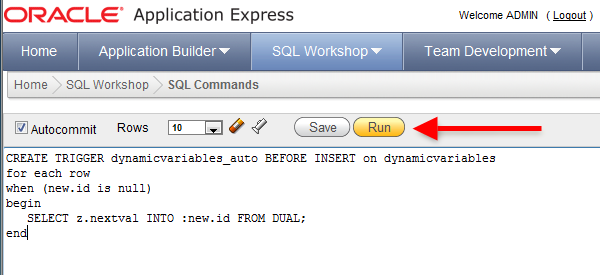

Create trigger and click Run (Figure 4):

CREATE TRIGGER dynamicvariables_auto BEFORE INSERT on dynamicvariables
for each row
when (new.id is null)
begin
   SELECT z.nextval INTO :new.id FROM DUAL;
end

Now I insert a test variable (AMOUNT) (Figure 5):

INSERT INTO dynamicvariables(varname, varvalue) VALUES ('AMOUNT','1560')

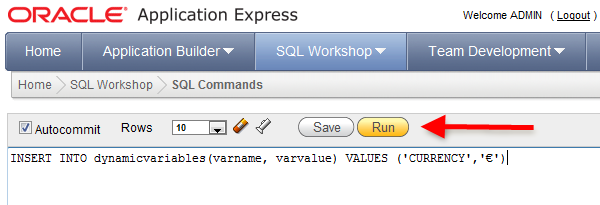

Now I insert a test variable (CURRENCY) (Figure 6):

INSERT INTO dynamicvariables(varname, varvalue) VALUES ('CURRENCY','€')

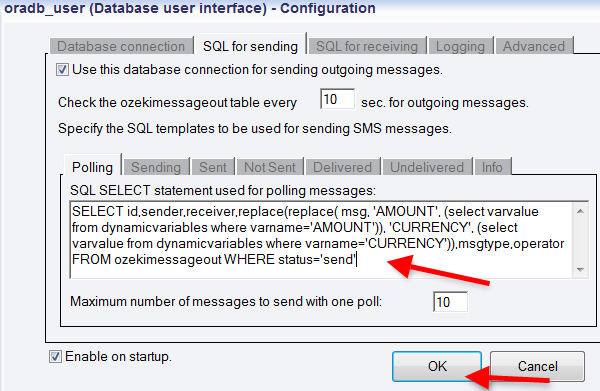

Now start Ozeki NG SMS Gateway. Go to the configuration panel of the database user and click SQL for Sending tab (Figure 7). On Polling tab enter the following SQL statement for polling messages:

SELECT id,sender,receiver,replace(replace( msg, 'AMOUNT', (select varvalue
from dynamicvariables where varname='AMOUNT')), 'CURRENCY', (select varvalue
from dynamicvariables where varname='CURRENCY')),msgtype,operator FROM
ozekimessageout WHERE status='send'

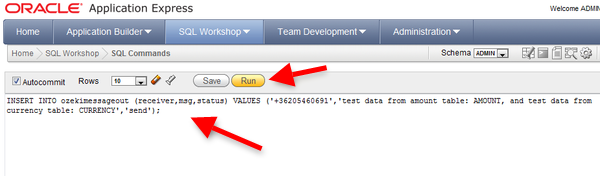

Then insert a test parameter in the ozekimessageout table in Oracle (Figure 8):

INSERT INTO ozekimessageout (receiver,msg,status) VALUES ('+36205460691','test
data from amount table: AMOUNT, and test data from currency table: CURRENCY','send');

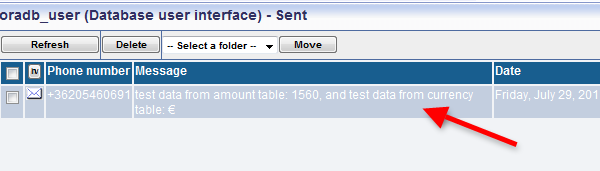

Figure 9 demonstrates a sent message in Ozeki NG SMS Gateway that has been sent with this configuration.
