HTTP SMS Client Connection

This chapter provides detailed instructions on how to install and configure the HTTP Client service provider connection for SMS messaging using the Ozeki NG - SMS Gateway software.

As you can read on the Service Provider Connections page, you need to install and configure one or more service provider connections for SMS messaging using Ozeki NG - SMS Gateway. One of the service provider connections supported by the software is the HTTP Client connection.

The HTTP Client protocol can be used to connect your PC directly to the SMSC for sending SMS messages over the Internet. For each outgoing message an HTTP GET or HTTP POST request is used. Text and binary SMS message types are supported.

You can install and configure this connection using the graphical user interface of Ozeki NG - SMS Gateway. To start installing and configuring an HTTP Client connection, click the Add button in the top right-hand corner of the Service providers panel on the left of the Management Consoleinterface. (To find out how to open this interface, check out the QuickStart Guide.)

You can also add a service provider connection by clicking the Add service provider item in the Service providers menu.

After you have clicked one of these, theAdd service provider panel will show up on the right of the interface. The panel contains a list of protocols you can install and use for communication with an SMS service provider.

To select the HTTP Client protocol, click the Install link in the respective entry in the list (Figure 1).

staring to install the http client connection
Figure 1 - Starting to install the HTTP Client connection

When you have installed the HTTP Client protocol, the Configuration panel will show up on the right of the interface. The first tab of the panel is the HTTP settings tab, which consists of a Connection and an Identification section.

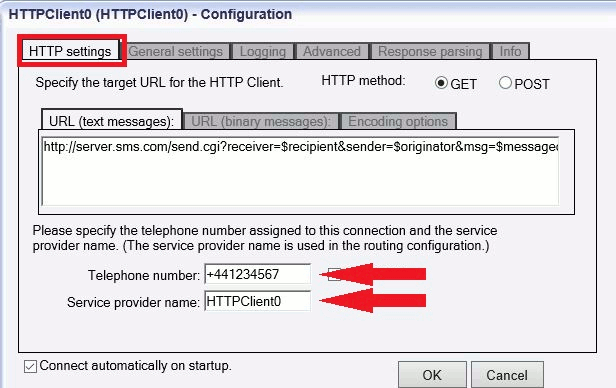

In the Connection section, specify the HTTP Client settings. This information is provided by the SMS service provider when you subscribe to the service (Figure 2).

the http settings tab
Figure 2 - The HTTP settings tab

First you need to specify the Target URL of the HTTP server in the template. This URL can contain certain keywords that will be replaced before the URL is called. The following keywords can be used:

KeywordDescription
$originatorThis denotes the sender telephone number.
$recipientThis denotes the recipient telephone number.
$messagedataThis denotes the first 1024 characters of the message text.
$messageidThis is the unique identifier string of the message. This identifier is generated by Ozeki NG - SMS Gateway.

You can also determine the HTTP method: you can select GET or POST.

Then, specify the telephone number assigned to this connection and the service provider connection name. To facilitate identification and to avoid confusion, you should name the connection after the GSM service provider. E.g., if you have set up an HTTP Client connection with Vodafone, it is advisable to name it "Vodafone". Also, note that different connections should be given different names. If you have different connections from the same service provider, you can use different but similar names for them, e.g.: "Vodafone1", "Vodafone2" (or something of the like). However, some load balancing solutions require an identical name for different connections. For details, visit the Load Balancing and the Load Balancing for SMPP v3.3 page.

Enter the information in the respective edit boxes. Remember to enter the phone number in international format: starting with "+". You can check the overridable checkbox to the right of the Telephone number edit box. This ensures that you can replace the phone number specified in the Telephone number edit box with a different one to be displayed as the sender of an outgoing message. You can also replace the number with (alphanumeric) text consisting of a maximum of eleven (11) characters. Therefore, when a message is sent out, e.g. using the Database user, you can specify any different phone number or a name to be displayed as the sender of the message.

Note that the phone number to be specified in the Telephone number edit box is a mandatory value. If you leave the edit box blank, the sending will be unsuccessful.

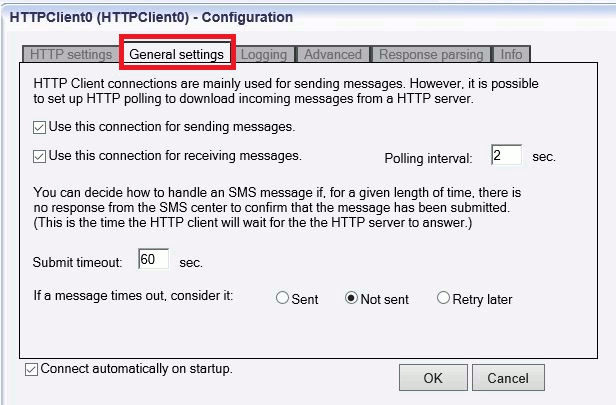

To perform general settings related to sending and receiving SMS messages using the HTTP Client connection, click the General Settings tab (Figure 3).

the general settings tab
Figure 3 - The General settings tab


In the upper section of the panel you can check either or both of the checkboxes. Which one(s) to check depends on what you wish to use this connection for. You can choose to use the connection for only sending or only receiving SMS messages (or both sending and receiving). Note that HTTP Client connections are mainly used for sending messages. However, it is possible to set up HTTP polling to download incoming messages from an HTTP server. In the Polling interval edit box you can specify the polling interval in seconds by entering a positive whole number in numerical format. If you are content with the default specification (2 seconds), leave this edit box unchanged.

In the lower section of the tab you can make choices and specifications to handle your connection to the SMS Center and the status of your SMS messages.

In the Submit timeout edit box you can specify the maximum waiting time for an SMS Center response confirming that your message has been successfully submitted. Successful submission means that the SMS Center has accepted the message for delivery. You can specify the waiting time by giving the number of seconds in numerical characters representing any positive whole number. If you are content with the default specification (60 seconds), leave this edit box unchanged.

You can choose how to consider a message you have sent if there is no response from the SMS Center after the specified length of time. Select one of the three radio buttons.

  • Select Sent to consider a message sent even if there is no response from the SMS Center.
  • Select Not sent to consider a message not sent if there is no response from the SMS Center.
  • Select Retry later to make the program try to send a message later if the SMS Center
    • has not confirmed its status as sent. Then, the message will be placed last in the outgoing message queue and sent out again when it is its turn.

To configure logging, click the Logging tab in theConfiguration panel.

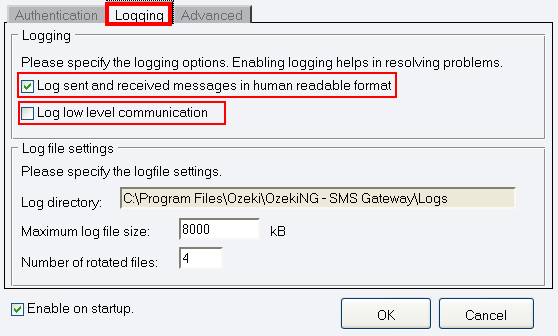

You can choose whether to make the program write log entries about sent and received messages in human readable format and/or log low level communication. Choosing the latter option will make the program produce logfiles containing binary codes representing the communication data. You should check at least the Log sent and received messages in human readable format checkbox, as logfiles can be useful in debugging communication problems (Figure 4).

logging options
Figure 4 - Logging options

In the Log file settings section of the tab, you can make specifications for the size and the number of available logfiles. Log rotation saves disk space, as it ensures that older (and probably no longer needed) logfiles will be automatically deleted from the log directory, which is specified in the Log directory text box. By default, the access path to the logfiles is: C:\Program Files\Ozeki\OzekiNG - SMS Gateway\Logs

In the Maximum log file size text box you can specify the maximum size of a logfile. Once this size is reached, a new logfile will be created. Specify the number of kilobytes for the size of a logfile by entering a positive whole number. By default, the maximum logfile size is 8000 kB.

In the Number of rotated files text box, specify the maximum number of rotated logfiles that are saved. Specify this number by entering a positive whole number. By default, the number of logfiles that are saved is 4 (see Figure 4 above).

If you are content with the default specifications, leave the text boxes unchanged.

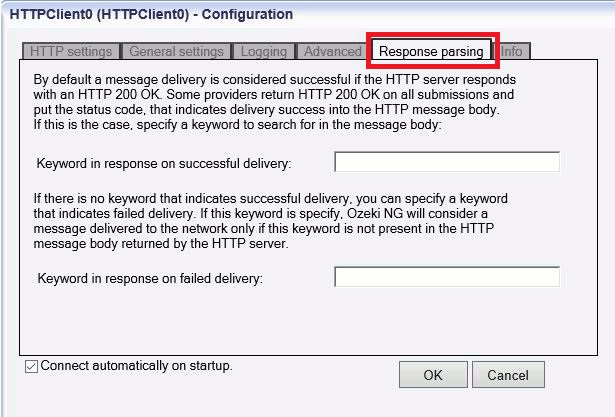

On Response parsing tab you can provide a keyword for response messages on successful delivery and keyword in response on failed delivery (Figure 5).

By default a message delivery is considered successful if the HTTP server responds with an HTTP 200 OK. Some providers return HTTP 200 OK on all submissions and put the status code, that indicates delivery success into the HTTP message body. If this is the case, specify a keyword to search for in the message body.

If there is no keyword that indicates successful delivery, you can specify a keyword that indicates failed delivery. If this keyword is specified, Ozeki NG will consider a message delivered to the network only if this keyword is not present in the HTTP message body returned by the HTTP server.

response parsing tab
Figure 5 - Response parsing tab

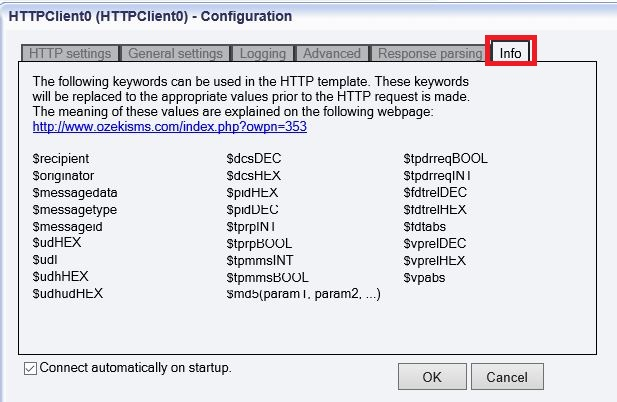

The Info tab enlists the following keywords that can be used in the HTTP template. These keywords will be replaced to the appropriate values prior to the HTTP request is made. The meaning of these values are explained on the following webpage: https://ozekisms.com/p_2353-variables-for-http-client-service-provider-connection.html.

info tab
Figure 6 - Info tab

The Configuration panel for service provider connections contains a Connect automatically on startup checkbox (in the bottom left-hand corner). If it is checked, Ozeki NG - SMS Gateway will automatically initiate a connection with the SMS Center when the program has started. If this checkbox is not checked, the connection has to be initiated manually.

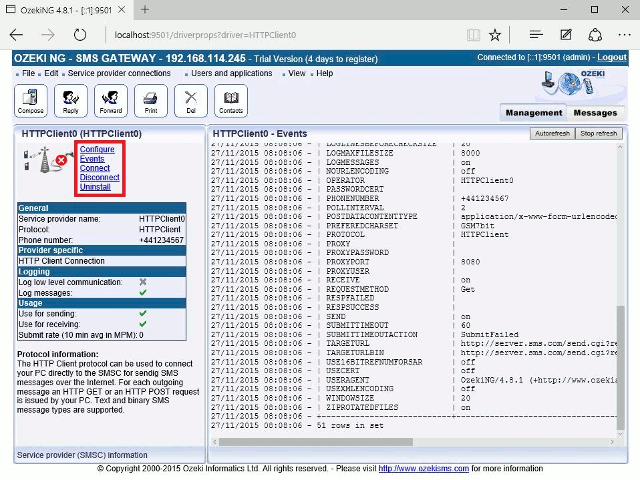

To initiate the connection manually, click the Connect link in the panel of the service provider connection (Figure 7).

links to operations
Figure 7 - Links to operations

You can open the panel of a service provider connection by clicking its name in the Service providers panel in the Management Console.

The panel of a service provider connection consists of three sections.

  • In the upper section you can find the name of the service provider connection (with the name of its protocol in brackets).
  • You can see an icon showing if the service provider connection is connected. If it is not, the icon is marked with an "x".

To the right of the icon you can find links to perform different operations.

  • Configure: to configure or modify the configuration of an installed service provider connection. Clicking this link will take you back to the Configuration panel.
  • Events: to view the logging of the latest server events related to the service provider connection. Clicking it will bring up the Events panel containing the logging of the latest server events.
  • Connect: to connect the service provider connection with the SMS Center.
  • Disconnect: to disconnect the service provider connection from the SMS Center.
  • Uninstall: to uninstall the service provider connection.

In the middle section of the panel you can see some of the most important configuration information.

  • The options that have been (re)activated during the configuration are marked with a tick.
  • The options that have not been activated or those that have been deactivated during the configuration are marked with an "x".

In the lower section of the panel of the service provider connection you can read some information about its protocol.
