UCP Connection

In this chapter you can find out how to install and configure the UCP IP SMS protocol for SMS messaging using the Ozeki NG - SMS Gateway software. In addition to an introduction containing general information about this protocol, this page provides detailed installation and configuration instructions.

Introduction

As you can read on the Service Provider Connections page, you need to install and configure one or more service provider connections for SMS messaging using Ozeki NG - SMS Gateway. One of the service provider connections supported by the software is the Universal Computer Protocol (UCP) connection.

This protocol is often used by GSM service providers for IP SMS connectivity. The currently used protocol versions (v3, v3.5, v4.0) can be used to transfer high volumes of SMS traffic. It is used for both premium rate and normal rate SMS messages.

One of the advantages of using UCP connections is that you can specify the sender address of the message. The sender address can be a custom phone number or a short word containing alphanumeric characters. (See the instructions about the overridable checkbox below.) Note, however, that some GSM service providers restrict the use of this option.

Another advantage of UCP is that it allows sending every type of message that the GSM network can carry. It can be used to send binary SMS messages (operator logos, ringtones), WAP Push messages, as well as other types of messages. (Check out the Appendix for links to pages about different message types.) Concatenated SMS messages and various alphabets can also be used.

In order to use UCP to connect to an SMSC over the Internet or other private TCP/IP network, you need to subscribe to the service of a service provider.

If you wish to use UCP to connect to your service provider, you need the following information from the service provider:

IP address of the SMSC
Port number of the SMSC
Username
Password

Some service providers require you to set up an IPSEC VPN tunnel to connect to their SMSC (Figure 1).

ucp connection with vpn
Figure 1 - UCP connection with VPN

In most cases you need a fix IP address, which you have to let the GSM service provider know so that they can give you access through their firewall. In some situations, the service provider does not want you to be able to set up more than one UCP connection from your computer to their service. If this is the case, they might ask you to use a specific source port for the connection.

Installation and configuration

You can install and configure this connection using the graphical user interface of Ozeki NG - SMS Gateway.

To start installing and configuring a UCP service provider connection, click the Add button in the top right-hand corner of the Service providers panel on the left of the Management Console interface. (To find out how to open this interface, check out the QuickStart Guide.)

You can also add a service provider connection by clicking the Add service provider item in the Service providers menu.

After you have clicked one of these, the Add service provider panel will show up on the right of the interface. The panel contains a list of protocols you can install and use for communication with an SMS service provider.

To select the UCP protocol, click the Install link in the respective entry in the list (Figure 2).

starting the ucp connection installation
Figure 2 - Starting to install the UCP connection

When you have installed the UCP Connection, the Configuration panel will show up on the right of the interface. The first tab of the panel is the UCP settings tab.

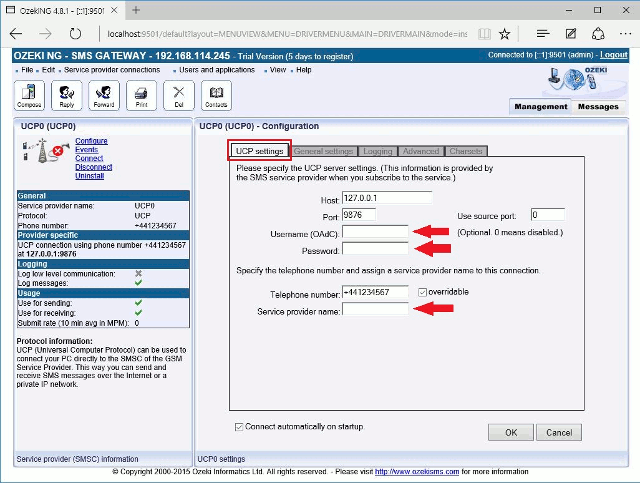

First, specify the UCP server settings. This information is provided by the GSM service provider whose service you have subscribed to. The connection parameters are the host name (or IP address), the port number, a username and a password. Service providers often use the phone number of the service or the port number as the username. Enter the information in the respective edit boxes (Figure 3).

specify the server settings
Figure 3 - Specifying the server settings

Then, specify the telephone number assigned to this connection and the service provider name. To facilitate identification and to avoid confusion, you should name the connection after the GSM service provider. E.g., if you have set up an SMPP connection with Vodafone, it is advisable to name it "Vodafone". Also, note that different connections should be given different names. If you have different connections from the same service provider, you can use different but similar names for them, e.g.: "Vodafone1", "Vodafone2" (or something of the like). However, some load balancing solutions require an identical name for different connections. For details, visit the Load Balancing and the Load Balancing for SMPP v3.3 page.

Some UCP servers require login. If this is the case, check the Server requires login checkbox.

Enter the information in the respective edit boxes. Remember to enter the phone number in international format: starting with "+". You can check the overridable checkbox to the right of the Telephone number edit box. This ensures that you can replace the phone number specified in the Telephone number edit box with a different one to be displayed as the sender of an outgoing message. You can also replace the number with (alphanumeric) text consisting of a maximum of eleven (11) characters. Therefore, when a message is sent out, e.g. using the Database user, you can specify any different phone number or a name to be displayed as the sender of the message.

Note that the phone number to be specified in the Telephone number edit box is a mandatory value. If you leave the edit box empty, and if the outgoing SMS message does not carry a sender phone number either, the sending will be unsuccessful.

To perform general settings related to sending and receiving SMS messages using this protocol, click the General Settings tab. This will open a panel consisting of the Sending and receiving, Timeout handling, Communication link management section.

In Sending and receiving section you can check any or all of the checkboxes. Which one(s) to check depends on what you wish to use this connection for and whether you need a delivery report. You can choose to use the connection for only sending or only receiving SMS messages (or both sending and receiving), and you can choose to request a delivery report for outgoing messages (Figure 4).

the general settings tab
Figure 4 - The General settings tab

In the other sections of the tab, you can make choices and specifications to handle your connection to the SMS Centre and the status of your SMS messages.

In the Submit timeout edit box you can specify the maximum waiting time for an SMS Centre response confirming that your message has been successfully submitted. Successful submission means that the SMS Centre has accepted the message for delivery. You can specify the waiting time by giving the number of seconds in numerical characters representing any positive whole number. If you are content with the default specification (60 seconds), leave this edit box unchanged.

You can choose how to consider a message you have sent if there is no response from the SMS Centre after the specified length of time. Select one of the three radio buttons.

  • Select Sent to consider a message sent even if there is no response from the SMS Centre.
  • Select Not sent to consider a message not sent if there is no response from the SMS Centre.
  • Select Retry later to make the program try to send a message later if the SMS Centre has not confirmed its status as sent. Then, the message will be placed last in the outgoing message queue and sent out again when it is its turn.

In the right section of this configuration panel, you can manage communication links. At first, in "Windows size" line you can increase the window size, if your UCP service provider supports windowing.

If you check the checkbox in the Communication link management section, you can make the program send keepalive packets to maintain connection. Proxy servers will drop a connection after a short period of time if there is no activity on it. Keepalive packets are sent during idle periods to keep the connection open.

In the Keepalive period edit box you can specify the maximum length of idle connection between the Ozeki NG - SMS Gateway and the SMSC. You can specify it by giving the number of seconds in numerical characters representing any positive whole number. If you are content with the default specification (30 seconds), leave this edit box unchanged.

You can also check the Limit speed to checkbox (you can provide the exact time in MPM) if your service provider does not support high speed.

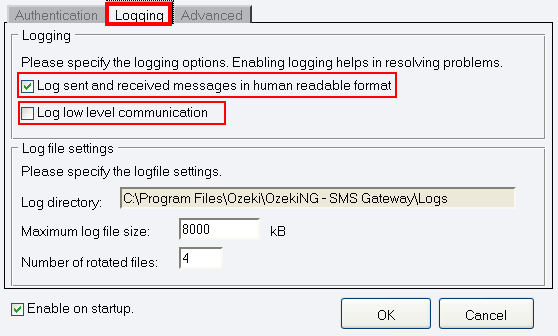

To configure logging, click the Logging tab in the Configuration panel. The tab has a Logging and a Log file settings section. Here, you can choose whether to make the program write log entries about sent and received messages in human readable format and/or log low level communication. Choosing the latter option will make the program produce logfiles containing binary codes representing the communication data. You should check at least the Log sent and received messages in human readable format checkbox, as logfiles can be useful in debugging communication problems (Figure 5).

logging options
Figure 5 - Logging options

In the Log file settings section of the tab, you can make specifications for the size and the number of available logfiles. Log rotation saves disk space, as it ensures that older (and probably no longer needed) logfiles will be automatically deleted from the log directory, which is specified in the Log directory text box. By default, the access path to the logfiles is: C:\Program Files\Ozeki\OzekiNG - SMS Gateway\Logs

In the Maximum log file size text box, you can specify the maximum size of a logfile. Once this size is reached, a new logfile will be created. Specify the number of kilobytes for the size of a logfile by entering a positive whole number. By default, the maximum logfile size is 8000 kB.

In the Number of rotated files text box, specify the maximum number of rotated logfiles that are saved. Specify this number by entering a positive whole number. By default, the number of logfiles that are saved is 4 (see Figure 5 above).

If you are content with the default specifications, leave the text boxes unchanged.

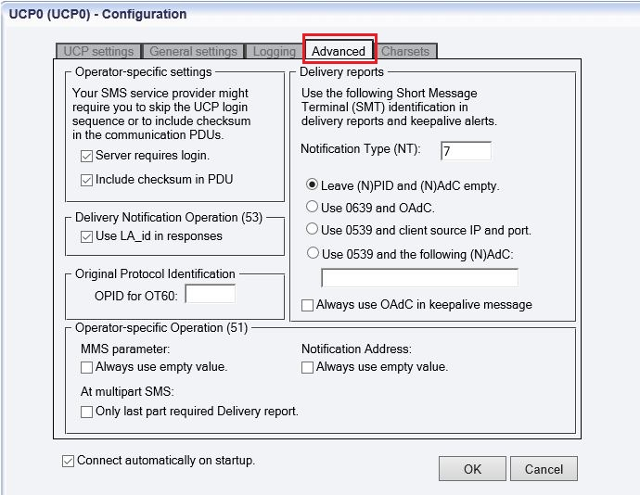

On Advanced tab you can make further settings related to the operator and delivery reports, and you can specify the Original Protocol Identification. In the Operator-specific settings, you can check or uncheck the Server requires login and Include checksum in PDU options if your service provider requires it. In Delivery reports section you can provide the "Notification Type" by giving a number from the follows:

  • 0 is the default value set by your service provider.
  • If you set 1 in the edit box, Delivery Notifications (DN) are reported only.
  • If you set 2 in the edit box, Non-Delivery Notifications (ND) are reported only.
  • If you set 3 in the edit box, both Delivery and Non-Delivery Notifications are reported.
  • If you set 4 in the edit box, Buffered Message Notifications (BN) are reported only.
  • If you set 5 in the edit box, both Buffered Message Notifications and Delivery Notifications are reported.
  • If you set 6 in the edit box, both Buffered Message Notifications and Non-Delivery Notifications are reported.
  • If you set 7 in the edit box, all notifications (DN,ND and BN) are reported.

After you set the notification type you can select from these options:

  • Leave (N)PID and (N)AdC empty; Use 0639 and OAdC;
  • Use 0539 and client source IP and port;
  • Use 0539 and the following (N)AdC (Figure 6).

advanced tab
Figure 6 - Advanced tab

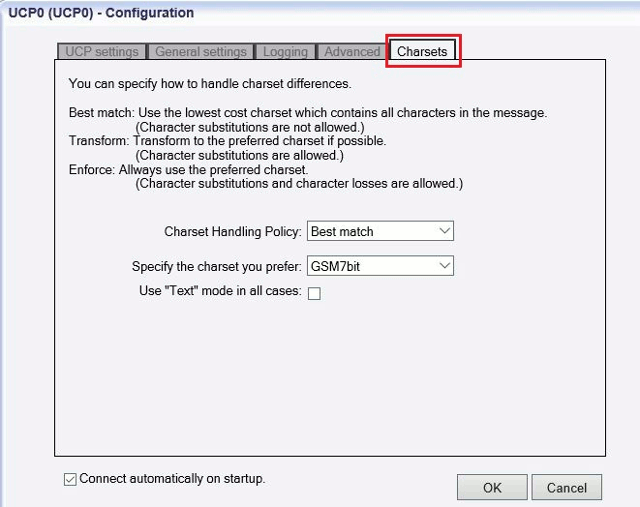

On Charset tab you can specify how to handle character set differences. Select Charset Handling Policy from the dropdown menu:

  • Best match: Use the lowest cost charset which contains all characters in the message. (Character substitutions are not allowed.)
  • Transform: Transform to the preferred charset if possible. (Character substitutions are allowed.)
  • Enforce: Always use the preferred charset. (Character substitutions and character losses are allowed.)

Finally, specify the character set you preferred: GSM7bit, UCS2, IA5_AO (Figure 7).

the charset tab
Figure 7 - Charset tab

The Configuration panel for service provider connections contains a Connect automatically on startup checkbox (in the bottom left-hand corner). If it is checked, Ozeki NG - SMS Gateway will automatically initiate a connection with the SMS Centre when the program has started. If this checkbox is not checked, the connection has to be initiated manually.

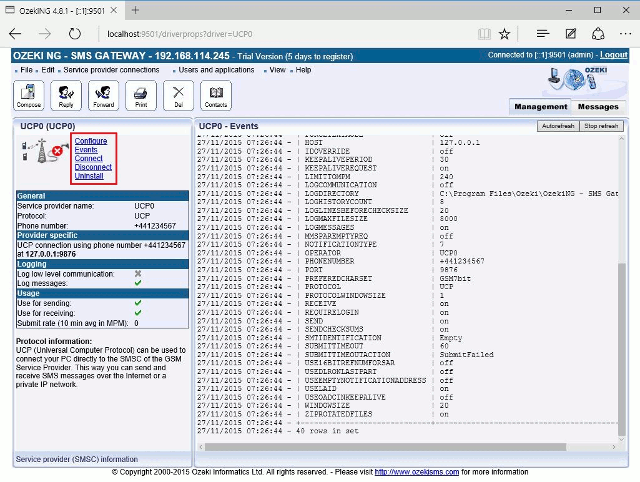

To initiate the connection manually, click the Connect link in the panel of the service provider connection (Figure 8).

links to operation
Figure 8 - Links to operations

You can open the panel of a service provider connection by clicking its name in the Service providers panel in the Management Console.

The panel of a service provider connection consists of three sections.

In the upper section you can find the name of the service provider connection (with the name of its protocol in brackets). You can see an icon showing if the service provider connection is connected. If it is not, the icon is marked with an "x".

To the right of the icon, you can find links to perform different operations.

  • Configure: to configure or modify the configuration of an installed service provider connection. Clicking this link will take you back to the Configuration panel.
  • Events: to view the logging of the latest server events related to the service provider connection. Clicking it will bring up the Events panel containing the logging of the latest server events.
  • Connect: to connect the service provider connection with the SMS Centre.
  • Disconnect: to disconnect the service provider connection from the SMS Centre.
  • Uninstall: to uninstall the service provider connection.

In the middle section of the panel, you can see some of the most important configuration information.

  • The options that have been (re)activated during the configuration are marked with a tick.
  • The options that have not been
  • activated or those that have been deactivated during the configuration are marked with an "x".

In the lower section of the panel of the service provider connection you can read some information about its protocol.
