International/Unicode characters with MSSQL

This page explains in details how you can send international characters with Ozeki NG SMS Gateway in MSSQL. You will find how to configure an existing database to be able to send international characters and how to create a new database that supports Unicode characters.

Create new MSSQL database table

If you use MSSQL and you create a new database table, you need to use nvarchar instead of varchar in the fields where you want to use Unicode characters.

How to configure an existing MSSQL database to send international characters

If you already have created MSSQL database tables and you want this database table to support sending UNICODE characters via SMS, follow this configuration guide. You need to configure your MSSQL database to accept international characters such as Arabic, Chinese, etc.

Configuration guide

Start MSSQL Server Management Studio. Click on the database to be configured and select Properties (Figure 1).

Figure 1 - Properties

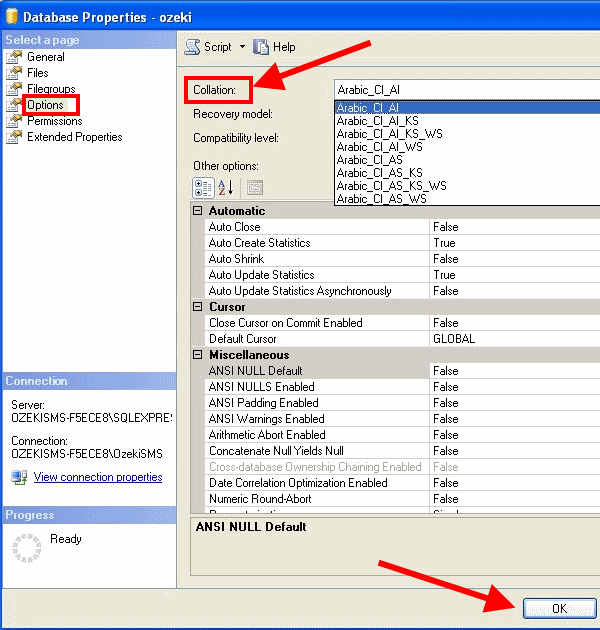

Then click on Options in the menu. In Collation section you can select the types of characters you want the database to accept. In this example I selected Arabic CI AI (Figure 2).

specify characters
Figure 2 - Specify characters

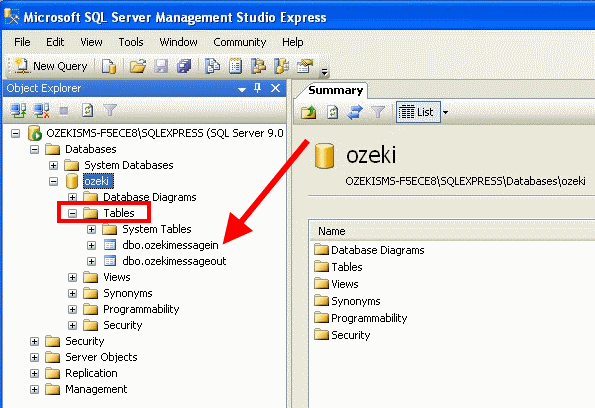

Now in Tables section right click on ozekimessagein table and select Modify (Figure 3).

modify tables
Figure 3 - Modify tables

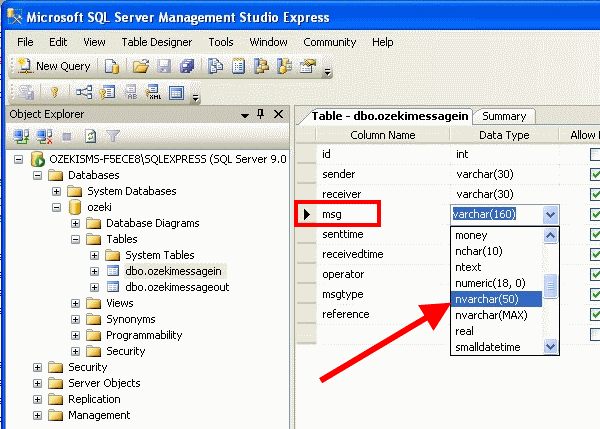

Set msg field to nvarchar (Figure 4).

select nvarchar
Figure 4 - Select nvarchar

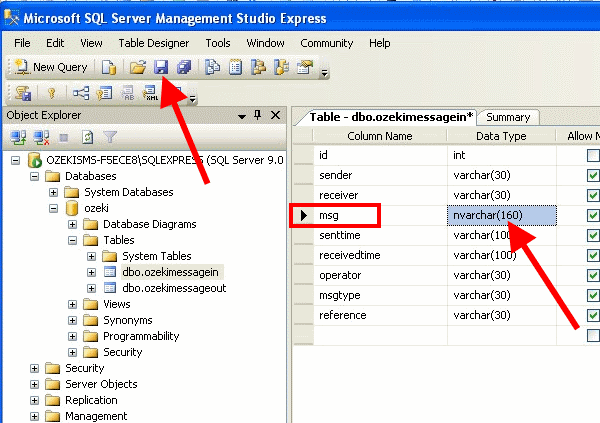

Increase the size of messages from (50) to (160) and Save settings (Figure 5).

increase size and save settings
Figure 5 - Increase size and save settings

Now do the same process with ozekimessageout table. So you need to right click on ozekimessageout table, select Modify, set msg field to nvarchar, increase size to (160) and save the changes.

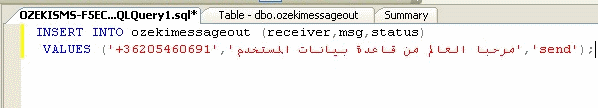

I created a test message containing Unicode characters (Arabic has been selected) and inserted it into ozekimessageout table (Figure 6).

insert test message into ozekimessageout
Figure 6 - Insert test message into ozekimessageout

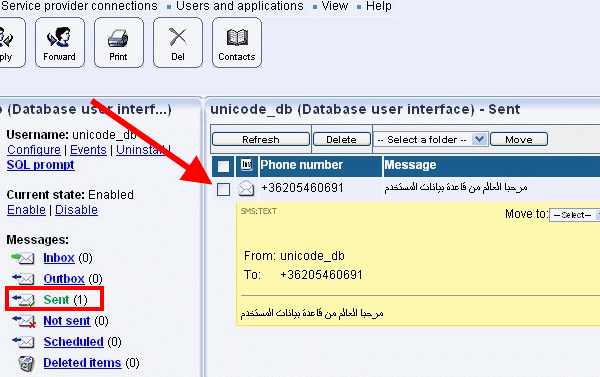

On Figure 7 you can see that Ozeki NG SMS Gateway sent out the test message (Figure 7)

sent message in ozeki ng sms gateway
Figure 7 - Sent message in Ozeki NG SMS Gateway
